DHCI_1_0_Inside.jpgDH-CI 1.0

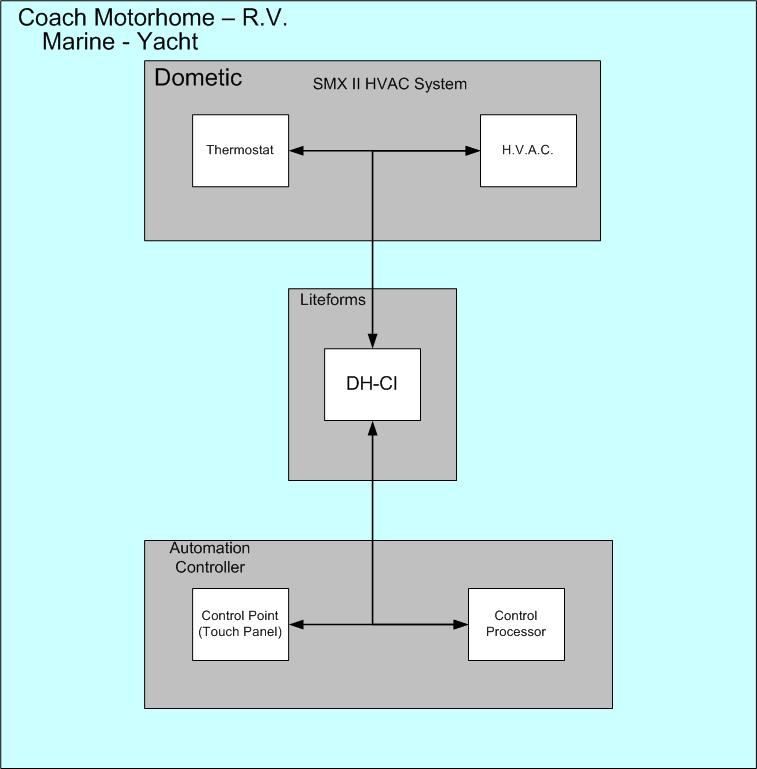

Here is a basic diagram of a DH-CI and how it interfaces with your Control Automation System.
Have a look..... inside, at the electronics.

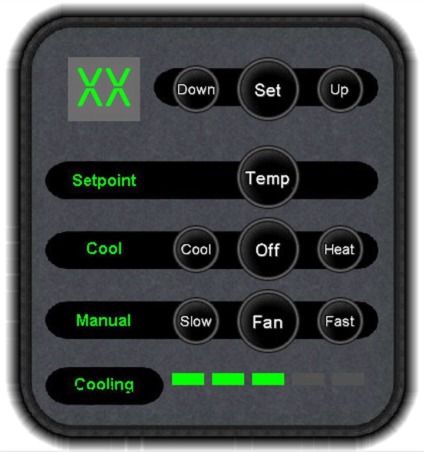

Example of touch screen graphics. Available with the demo program.

The DH-CI 1.0 provides full two-way communication between your Control Automation System and Dometics SMX II HVAC System.

SMX II Interface:
RJ-11 / 6 pin
Powered from the HVAC unit, it can be connected in parallel with an SMX II Display or Control Panel.
It can also operate as a stand-alone control or display through a Control Automation system.

Control Interface: (Crestron, AMX, Control4 or other Control Automation System)
Connector: Female DB-9

Protocol:RS-232 38.4k Baud N,8,1

Software:
Crestron - Requires DHCI 1.0.usp (Crestron SIMPL+ Module) and a 2 Series Processor. Demo program available upon request.
